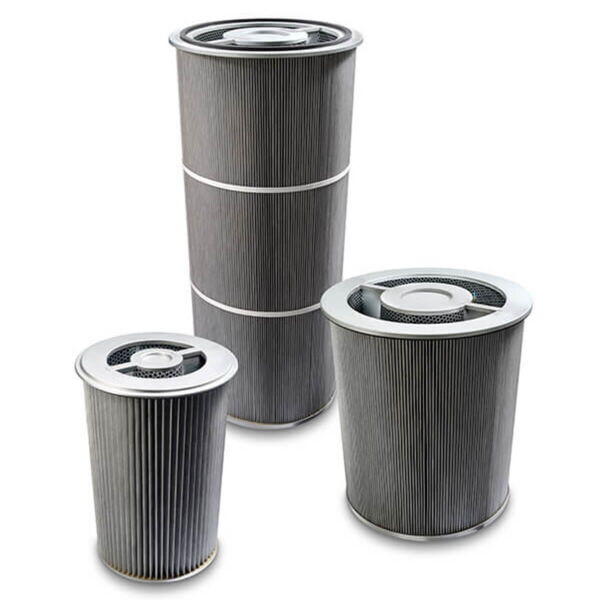

MULTICELL Filter Cartridges Ø 570–465 mm
- Large filter area on small space
- Filter side inside and outside
- Alternate cleaing by jet pulse during operation
- Conical shape
Applications
Shot blasting machines
Industrial dust collectors
Separation of welding smoke
Pharma industry
Chemical industry
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 140 °C
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations
- Ring nozzle
- Solenoid valves
- Valve controls
For raw gas side or clean side installation
| Ø [mm] |
Length L [mm] |
Filter area [m²] |
|---|---|---|
| 570-465 | 605 | 17,0 |
| 570-465 | 985 | 20,0 |
| 570-465 | 985 | 28,0 |
| 570-465 | 1205 | 34,0 |
Technical changes reserved.
We implement your requirements
Are you looking for a solution for a new area of application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
