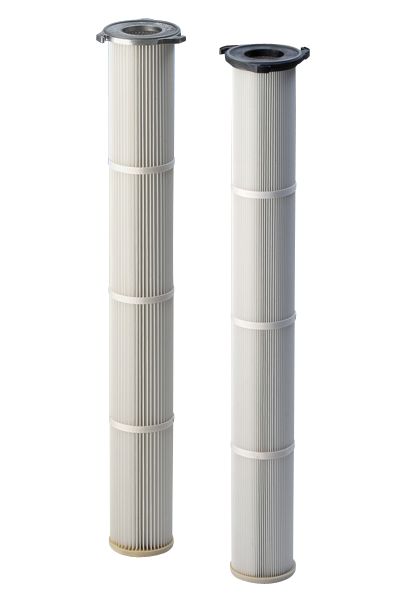

Filter Cartridges Ø 145 mm with 3 Lug Flange

XNUMX lug flange made of metal or synthetics

Request data sheet

Applications

All dedusting cases
Filter Media
  • Polyester
  • Polypropylene
  • Glass fibre paper
  • Cellulose
  • Aramid
  • Polyphenylene sulfide
  • PTFE

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

All Filter Materials

Special filter media for unusual operating conditions are available on request.

Properties

Standard

  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 140 °C
  • You can find filter cartridges that are heat-resistant up to 400 °C at Hot gas filtration
  • Metal parts: stainless steel
  • Certified for food according to REG (EC) 1935, FDA CFR 21

3-lug flange Ø TK 180 mm for installation on the raw or clean gas side

Ø
[mm]
Length L
[mm]
Filter area
[m²]
145 305 1,0
145 605 1,6
145 605 2,1
145 985 3,6
145 1205 3,2
145 1505 5,4

Technical changes reserved.
