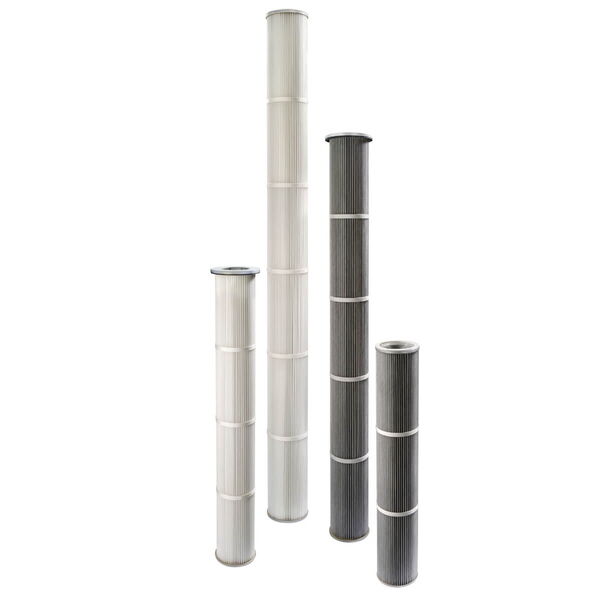

Filter Cartridges Ø 160 mm PLITEX 3000

  • Toolless assembly through thread
  • Interchangeable with filter bags
  • Can be used in all industrial areas

Applications

Pigment production
Metal spraying
Plastic processing
Blast furnace extraction
Laser cutting

  • Polyester
  • Polypropylene
  • Glass fibre paper
  • Cellulose
  • Aramid
  • Polyphenylene sulfide
  • PTFE

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

Special filter media for unusual operating conditions are available on request.

Standard

  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 140 °C
  • You can find filter cartridges that are heat-resistant up to 400 °C at Hot gas filtration
  • Metal parts: stainless steel
  • Certified for food according to REG (EC) 1935, FDA CFR 21

  • Filter holders
  • Cleaning nozzles
  • Solenoid valves
  • Valve controls

Raw gas side installation with thread Rd 100

For raw gas side installation with Rd 100 thread

Ø
[mm]
Length L
[mm]
Filter area
[m²]
160 602 1,6
160 982 2,7
160 1202 3,3
160 1502 4,1
160 2002 5,6

Accessory: filter holder 310-001-000038

Clean side installation

For clean side installation Ø 185 mm

Ø
[mm]
Length L
[mm]
Filter area
[m²]
160 602 1,6
160 982 2,7
160 1202 3,3
160 1502 4,1
160 2002 5,6

Technical changes reserved.

We implement your requirements

Are you looking for a solution for a new area of ​​application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
