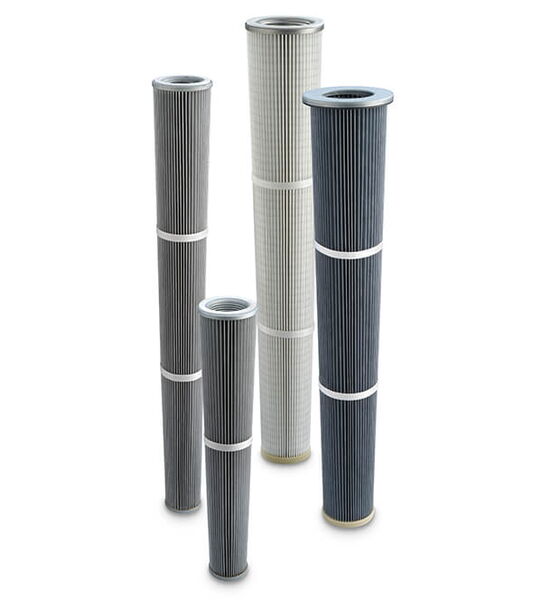

Filter Cartridges Ø 120, 160, 185 mm Conical
- Compact dust collectors
- Low upflow velocity in the system
- Small interior space of the filter cartridge
Production of food
Mobile dust collectors
- Glass fibre paper
- Polyphenylene sulfide
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
- Maximum operating temperature up to 140 °C
- You can find filter cartridges that are heat-resistant up to 400 °C at Hot gas filtration
- Metal parts: stainless steel
- Certified for food according to REG (EC) 1935, FDA CFR 21
- Filter holders
- Cleaning nozzles
- Solenoid valves
- Valve controls
Raw gas side installation with thread Rd 72
For raw gas side installation with Rd 72 thread
Accessory: filter holder 310-001-000071
Raw gas side installation with thread Rd 100
For raw gas side installation with Rd 100 thread
Accessory: filter holder 310-001-000038
Clean side installation
For clean side installation Ø 185 mm
Technical changes reserved.
We implement your requirements
Are you looking for a solution for a new area of application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
Our extensive range of filter elements in excellent quality covers the highest requirements in dust and air filtration.
