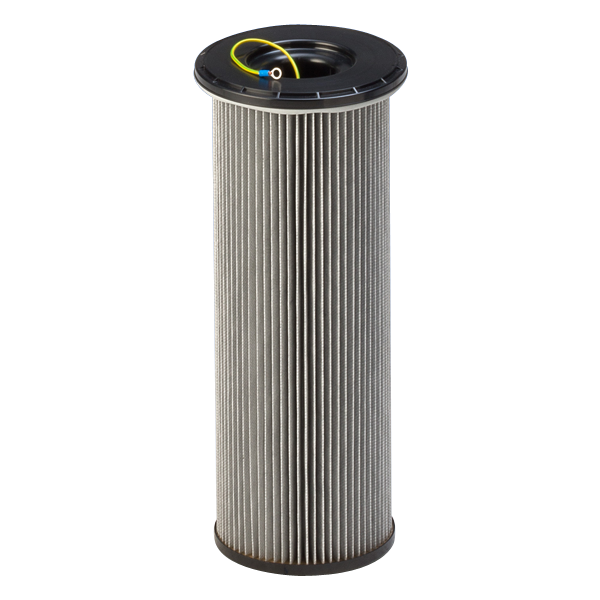

Filter Cartridges Ø 232–202 mm
Applications
Silo ventilation
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 140 °C
- You can find filter cartridges that are temperature-resistant up to 400 °C at Hot gas filtration
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations
For clean side installation Ø 232 mm
Ø [mm] |
Length L [mm] |
Filter area [m²] |
---|---|---|
202 | 230 | 1,7 |
202 | 405 | 3,7 |
202 | 570 | 2,5 |
202 | 760 | 3,3 |
202 | 810 | 3,5 |
Technical changes reserved.
We implement your requirements
Are you looking for a solution for a new area of application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
