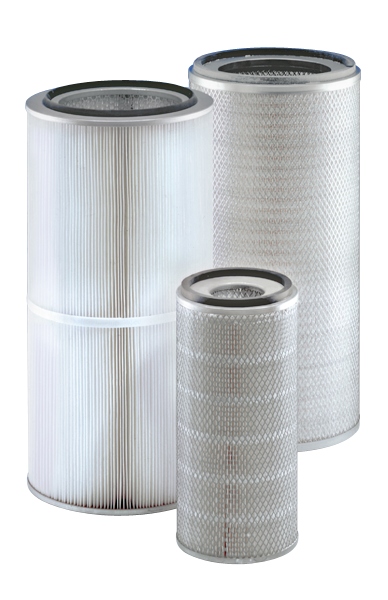

Filter Cartridges Ø 324, 327 mm MICROTEX

  • Up to 21 m² filter area per element
  • Filter material with nanofibers and flame retardant possible
  • Components harmless with food contact upon request

Applications

Safety filter
Deburring
Manufacture of fertilizers
Shot blasting machines
Welding fume separation
Powder coating

  • Polyester
  • Polypropylene
  • Glass fibre paper
  • Cellulose
  • Aramid
  • Polyphenylene sulfide
  • PTFE

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

Special filter media for unusual operating conditions are available on request.

Standard

  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 220 °C
  • Further information can be found under Hot Gas Filtration
  • Metal parts: stainless steel
  • harmless with food contact according to EC + US FDA regulations

  • Cleaning nozzles
  • Short injectors
  • Venturi nozzles
  • Solenoid valves
  • Valve controls
  • Flow guide cylinder

Raw gas side installation with tie rod

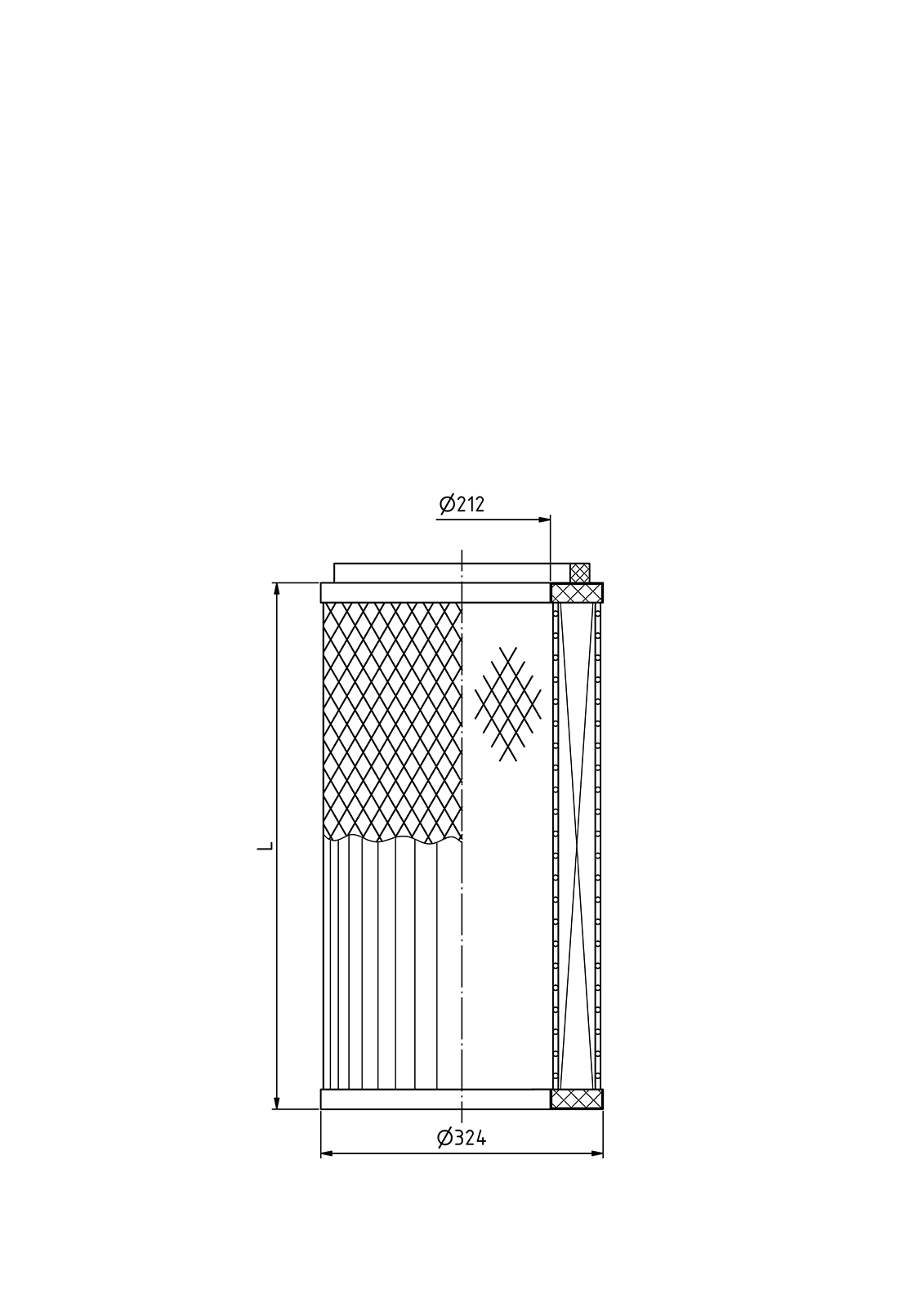

Both ends open

Raw gas side installation with tie rod

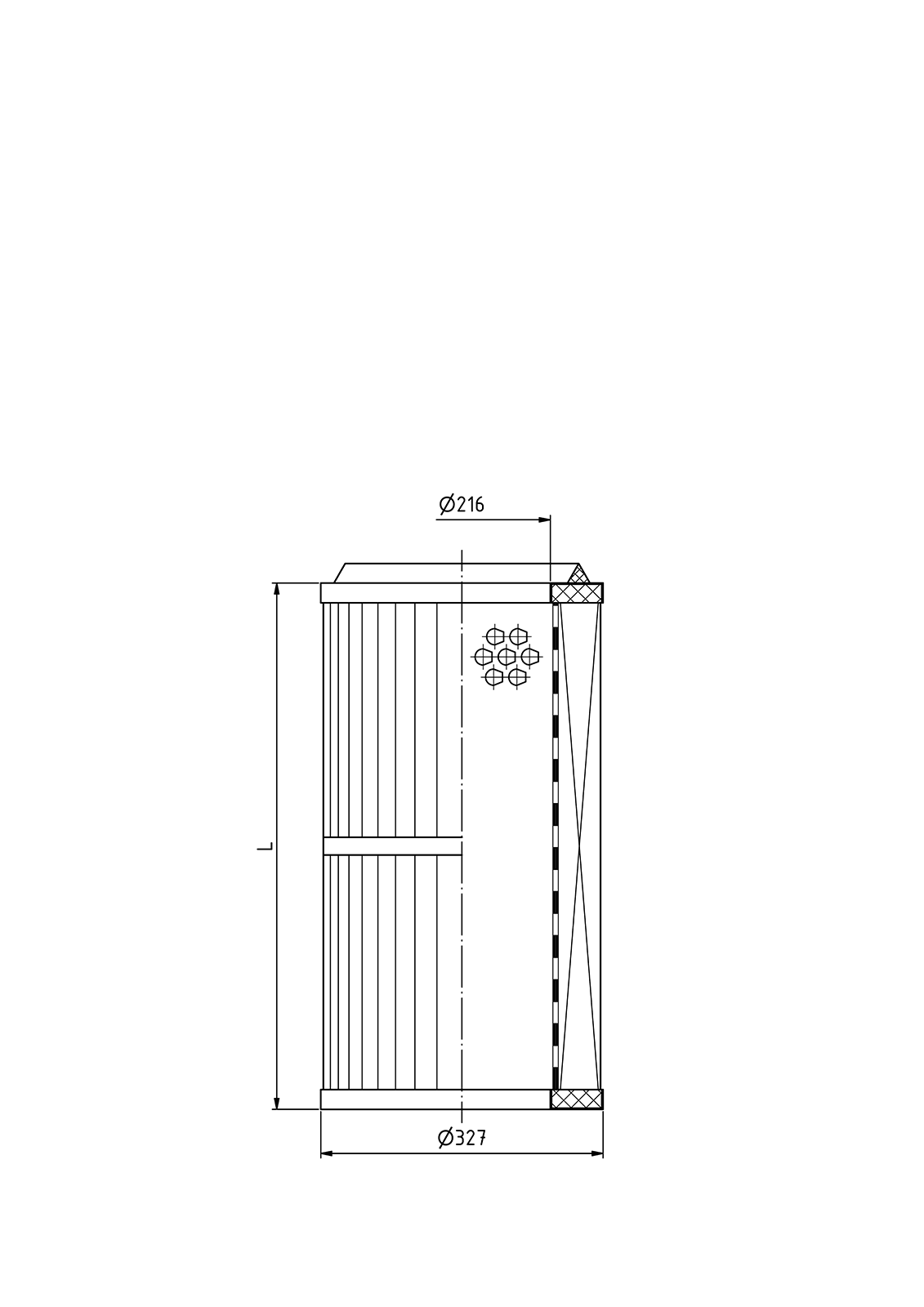

Both ends open

For raw gas side installation with tie rod or both ends open

Ø A
[mm]
Length L
[mm]
Ø B
[mm]
Filter area
[m²]
324 660 13 21,0
324 660 - 21,0
327 662 13 11,0
327 662 - 11,0

Technical changes reserved.

We implement your requirements

Are you looking for a solution for a new area of ​​application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
