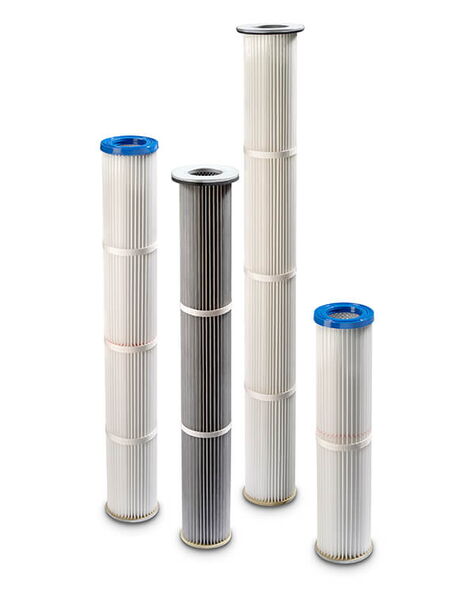

Filter Cartridges Ø 130 mm

  • Low pleat depth, easy to clean
  • For agglomerating dust
  • High air to cloth ratios possible

Applications

Pneumatic conveyance
Production of food
Loading facilities
Product separator
Silo ventilation

  • Polyester
  • Polypropylene
  • Glass fibre paper
  • Cellulose
  • Aramid
  • Polyphenylene sulfide
  • PTFE

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

Special filter media for unusual operating conditions are available on request.

Standard

  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 400 °C
  • Further information can be found under Hot Gas Filtration
  • Metal parts: stainless steel
  • harmless with food contact according to EC + US FDA regulations

  • Filter holders
  • Cleaning nozzles
  • Solenoid valves
  • Valve controls

Raw gas side installation with snap lock

For raw gas side installation with snap lock

Ø
[mm]
Length L
[mm]
Filter area
[m²]
130 305 0,5
130 605 1,0
130 985 1,7
130 1205 2,0

Accessory: filter holder 310-001-000026

Clean side installation

For clean side installation Ø 155 mm

Ø
[mm]
Length L
[mm]
Filter area
[m²]
130 302 0,5
130 602 1,0
130 982 1,7
130 1202 2,0



Technical changes reserved.

We implement your requirements

Are you looking for a solution for a new area of ​​application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
