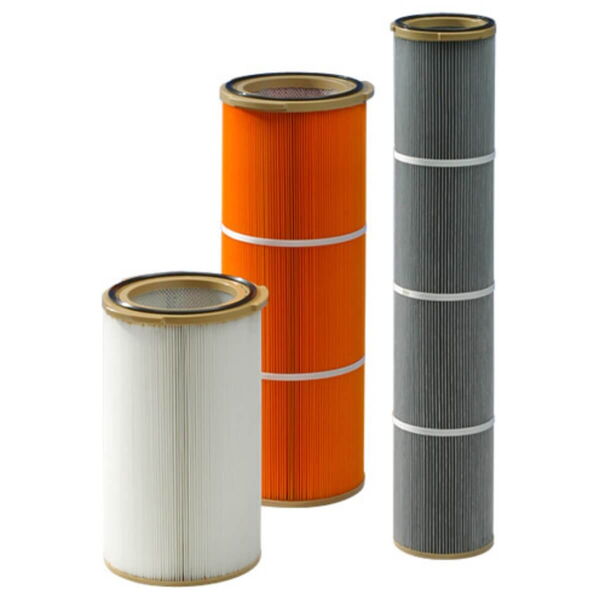

Filter Cartridges Ø 153, 216, 330 mm ECOTEX

  • Quick and easy assembly without tools
  • Installation by turning through 120 °
  • Quick cartridge change
Request data sheet

Applications

Powder coating
Production of jewelry
Chemical industry
Welding fume extraction
Sanding dust
Filter Media
  • Polyester
  • Polypropylene
  • Glass fibre paper
  • Cellulose
  • Aramid
  • Polyphenylene sulfide
  • PTFE

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

All Filter Materials

Special filter media for unusual operating conditions are available on request.

Properties

Standard

  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 140 °C
  • You can find filter cartridges that are heat-resistant up to 400 °C at Hot gas filtration
  • Metal parts: stainless steel
  • Certified for food according to REG (EC) 1935, FDA CFR 21
Accessories
  • Filter holders
  • Cleaning nozzles
  • Short injectors
  • Venturi nozzles
  • Solenoid valves
  • Valve controls
  • Flow guide cylinder
To the accessories

For raw gas side installation

Ø A
[mm]
Length L
[mm]
Filter area
[m²]
Ø TK
[mm]
153 635 1,5 205
153 1015 2,5 205
153 1235 3,0 205






Accessory: filter holder 310-001-000019

Ø A
[mm]
Length L
[mm]
Filter area
[m²]
Ø TK
[mm]
216 610 3,0 264
216 990 5,0 264
216 1210 6,0 264






Accessory: filter holder 310-001-000022

Ø A
[mm]
Length L
[mm]
Filter area
[m²]
Ø TK
[mm]
330 610 6,0 387
330 610 10,0 387
330 990 10,0 387
330 990 13,0 387
330 990 16,0 387
330 1210 12,0 387
330 1210 16,0 387
330 1210 20,0 387

Accessory: filter holder 310-001-000025

Technical changes reserved.

We implement your requirements

Are you looking for a solution for a new area of ​​application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
