Filter cassettes for Dust collectors
Low pressure loss
Installation either on the raw or clean gas side
Low overall height of the suction system
Cleaning with brushes or compressed air
Installation possible horizontally or vertically
Maximum operating temperature 140 ° C
Applications
- Polyester
- Polypropylene
- Glass fibre paper
- Filter media for oil and emulsion mist
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request. Please contact us.
Standard
- Maximum operating temperature: 80 ° C
- Metal parts: galvanized steel
- Cleaning with brushes or compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 140 ° C
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations

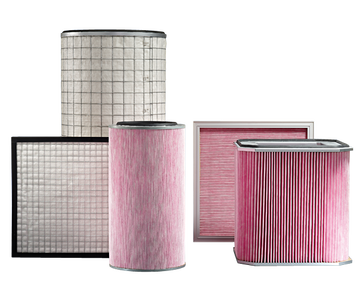

Filter Elements for special conditions of Dust Collection
Accessories
For our filter cartridges and filter panels you receive various accessories for assembly and cleaning.
Assembly
1 Cartridge holders for filter cartridges Ø 115 - 330 mm
Cleaning
2 Venturi nozzles for filter cartridges Ø 160 - 330 mm
3 Short injectors for filter cartridges Ø 160 - 330 mm
4 Ring nozzle for filter cartridge Ø 570 mm
5 Venturi nozzle for filter panel XNUMX - XNUMX mm
6 Cleaning nozzles 3/8 "- 1" for filter cartridges Ø 115 - 330 mm
7 Solenoid valves ¾ ", 1", 1 ½ "
8 Rotary cleaning wings for filter cartridges Ø XNUMX mm
9 Air flow deflector for filter cartridges Ø XNUMX mm
10 Rotating brushes for filter cartridges installed onto spigot
11 Controls for valves
Others
12 Precoating powder
13 Contrast powder for leak detection
(10 - 13 not shown)
