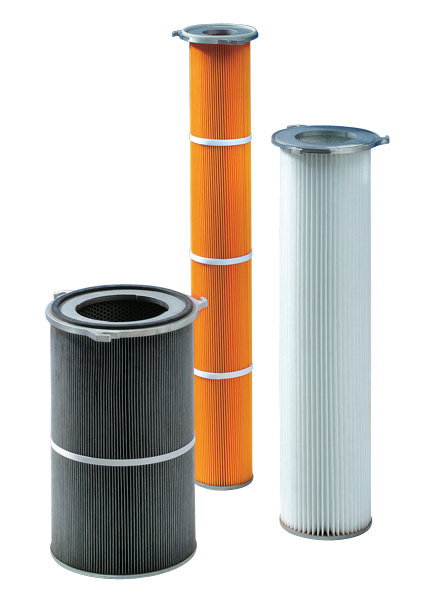

Filter Cartridges Ø 150, 214, 327 mm with 3 Lug Flange
- Robust flange made of aluminum
- Installation possible from the raw gas side or clean side
- Long service life
Applications
Recycling
Metal processing
Aircraft industry
Zinc spraying
Mining industry
Foundries
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 140 °C
- You can find filter cartridges that are temperature-resistant up to 400 °C at Hot gas filtration
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations
- Cleaning nozzles
- Short injectors
- Venturi nozzles
- Solenoid valves
- Valve controls
- Flow guide cylinder
Series flange Ø TK = 205 mm for raw gas side or clean side installation
| Ø A [mm] |
Length L [mm] |
Filter area [m²] |
Ø TK [mm] |
|---|---|---|---|
| 150 | 605 | 1,5 | 205 |
| 150 | 985 | 2,5 | 205 |
| 150 | 1205 | 3,0 | 205 |
Series flange Ø TK = 266 mm for raw gas side or clean side installation
| Ø A [mm] |
Length L [mm] |
Filter area [m²] |
Ø TK [mm] |
|---|---|---|---|
| 214 | 605 | 3,0 | 266 |
| 214 | 985 | 5,0 | 266 |
| 214 | 1205 | 6,0 | 266 |
Series flange Ø TK = 393 mm for raw gas side or clean side installation
| Ø A [mm] |
Length L [mm] |
Filter area [m²] |
Ø TK [mm] |
|---|---|---|---|
| 327 | 605 | 6,0 | 393 |
| 327 | 605 | 10,0 | 393 |
| 327 | 985 | 10,0 | 393 |
| 327 | 985 | 13,0 | 393 |
| 327 | 985 | 16,0 | 393 |
| 327 | 1205 | 12,0 | 393 |
| 327 | 1205 | 16,0 | 393 |
| 327 | 1205 | 20,0 | 393 |
Series flange Ø TK = 365 mm for raw gas side installation
| Ø A [mm] |
Length L [mm] |
Filter area [m²] |
Ø TK [mm] |
|---|---|---|---|
| 327 | 605 | 6,0 | 365 |
| 327 | 605 | 10,0 | 365 |
| 327 | 985 | 10,0 | 365 |
| 327 | 985 | 13,0 | 365 |
| 327 | 985 | 16,0 | 365 |
| 327 | 1205 | 12,0 | 365 |
| 327 | 1205 | 16,0 | 365 |
| 327 | 1205 | 20,0 | 365 |
Technical changes reserved.
We implement your requirements
Are you looking for a solution for a new area of application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
