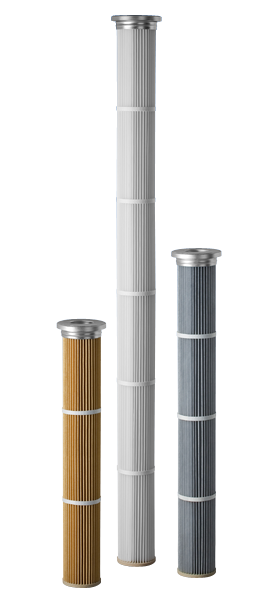

Filter Cartridges Ø 178–145 mm

  • Quick and easy assembly from the clean gas side
  • Robust construction
  • Metal upper end cap
  • Replacement for filter hoses
Request data sheet

Applications

Mills
Production of plastic parts
Chemical industry
Blast furnaces in foundries
Manufacture of paints and pigments
Filter Media
  • Polyester
  • Polypropylene
  • Glass fibre paper
  • Cellulose
  • Aramid
  • Polyphenylene sulfide
  • PTFE

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

All Filter Materials

Special filter media for unusual operating conditions are available on request.

Properties

Standard

  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 140 °C
  • You can find filter cartridges that are heat-resistant up to 400 °C at Hot gas filtration
  • Metal parts: stainless steel
  • Certified for food according to REG (EC) 1935, FDA CFR 21
Accessories
  • Filter holders
  • Cleaning nozzles
  • Solenoid valves
  • Valve controls
To the accessories

For clean side installation Ø 178 mm

Ø
[mm]
Length L
[mm]
Filter area
[m²]
145 603 1,5
145 983 2,6
145 1203 3,2
145 1403 3,8
145 2003 5,5

for hole in the filter mounting plate Ø 159 mm
Accessory: Seal 370-001-000001

Technical changes reserved.

We implement your requirements

Are you looking for a solution for a new area of ​​application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
