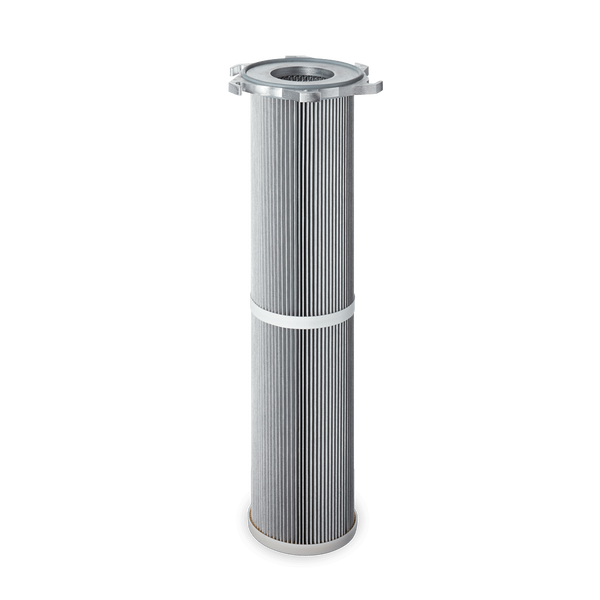

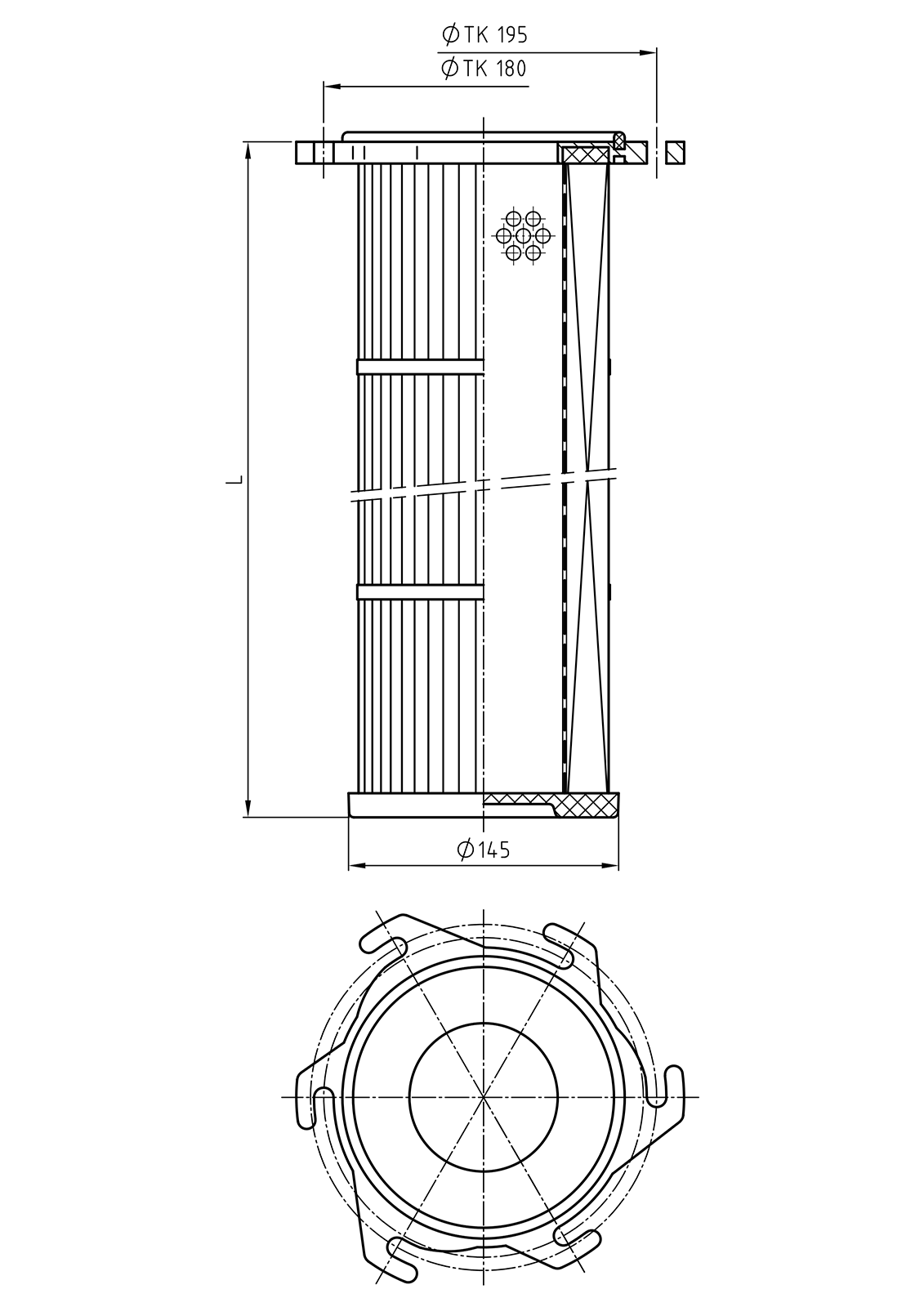

Filter Cartridges Ø 145 mm with 6 Lug Flange
- For dusts that are difficult to clean
- Universally applicable
- Suitable for high dust concentrations
Applications
Mixing
Silo ventilation
Product conveyance
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 140 °C
- You can find filter cartridges that are temperature-resistant up to 400 °C at Hot gas filtration
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations
