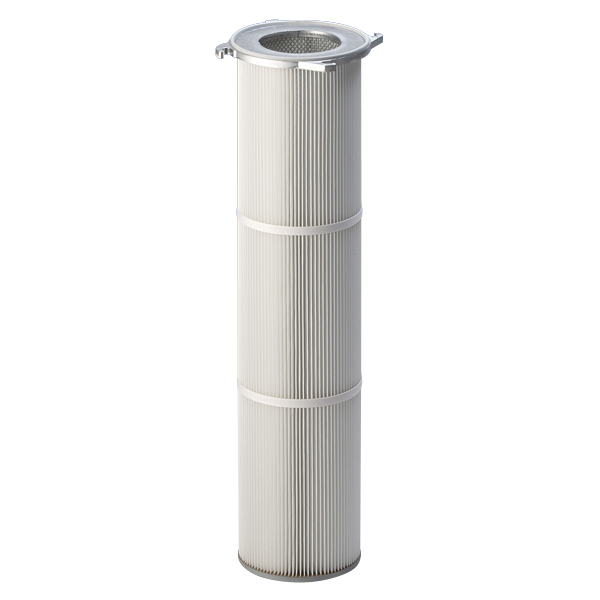

Filter Cartridges Ø 214 mm with 4 Lug Flange

4-lug flange Ø TK for assembly = 266 mm

Applications

All dedusting cases

  • Polyester
  • Polypropylene
  • Glass fibre paper
  • Cellulose
  • Aramid
  • Polyphenylene sulfide
  • PTFE

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

Special filter media for unusual operating conditions are available on request.

Standard

  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 140 °C
  • You can find filter cartridges that are heat-resistant up to 400 °C at Hot gas filtration
  • Metal parts: stainless steel
  • Certified for food according to REG (EC) 1935, FDA CFR 21

With 4-lug flange Ø TK 266 mm for installation on the raw or clean gas side

Ø
[mm]
Length L
[mm]
Filter area
[m²]
214 505 2,5
214 605 3,0
214 750 3,7
214 985 5,0

Technical changes reserved.

We implement your requirements

Are you looking for a solution for a new area of ​​application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
