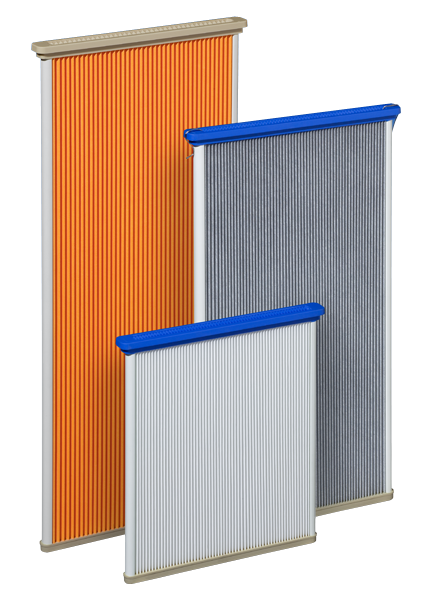

Filter Panels 520-498 mm

  • Resilient to large concentrations of dust
  • Efficient cleaning thanks to the flow-optimized head
  • High mechanical resilience due to robust construction
  • Long service life
Request data sheet

Applications

Metal processing
Plastic grinding
Laser & plasma cutting
Pharma industry
Welding fume extraction
Chemical industry
Filter Media
  • Standard: polyester
  • The filter material is adapted to the properties of the dust

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

All Filter Materials

Special filter media for unusual operating conditions are available on request.

Properties

Standard

  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 140 °C
  • You can find filter cartridges that are heat-resistant up to 400 °C at Hot gas filtration
  • Metal parts: stainless steel
  • Certified for food according to REG (EC) 1935, FDA CFR 21
Accessories
  • seals
  • Venturi nozzle
  • Solenoid valves
  • Valve controls
To the Accessories

For clean side installation

[mm] Length L
[mm]
Filter area
[m²]
520-498 605 1,4
520-498 605 2,1
520-498 985 2,4
520-498 985 3,6
520-498 1205 2,8
520-498 1205 4,2

Technical changes reserved.

We implement your requirements

Are you looking for a solution for a new area of ​​application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
