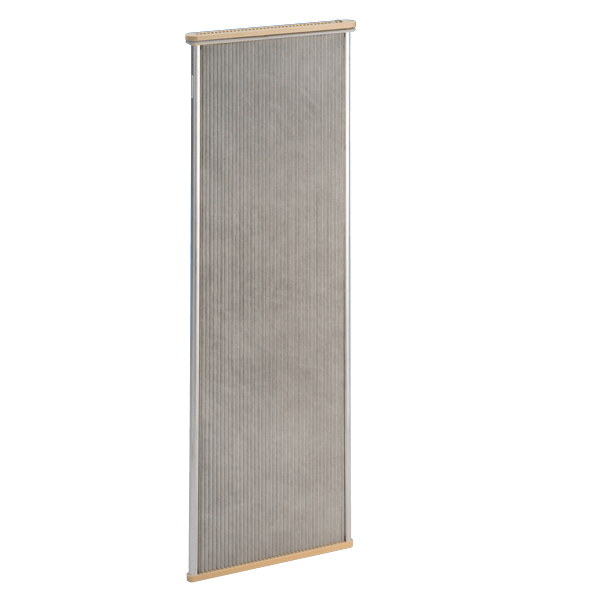

Filter Panels 495-480 mm

Applications

Spare part

  • Standard: Polyester
  • The filter material is adapted to the properties of the dust

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

Special filter media for unusual operating conditions are available on request.

Standard

  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 120 °C
  • Metal parts: stainless steel
  • harmless with food contact according to EC + US FDA regulations

For clean side installation

[mm] Length L
[mm]
Filter area
[m²]
495-480 985 2,0
495-480 1505 3,0

Technical changes reserved.

We implement your requirements

Are you looking for a solution for a new area of ​​application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
