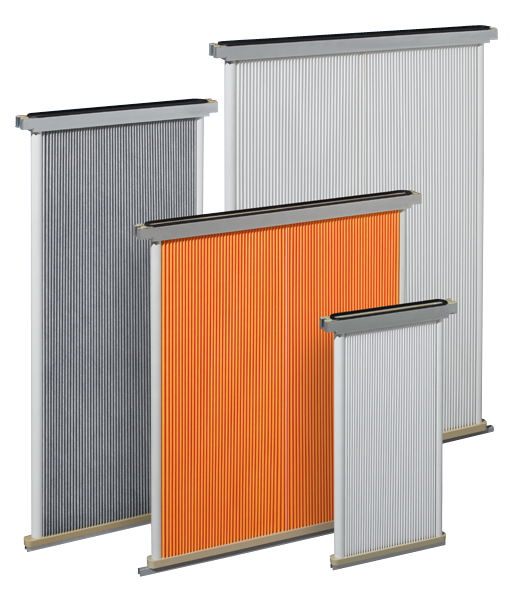

Filter Panels 497 - 1065 mm MULTITEX

  • Low filter resistance
  • Very easy to clean
  • Filter media with coating or membrane
Request data sheet

Applications

Powder coating
Plastics Processing
Shot blasting machines
Deposition of enamel powder
Chemical industry
Deburring
Food industry
Filter Media
  • Standard: polyester
  • The filter material is adapted to the properties of the dust

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

All Filter Materials

Special filter media for unusual operating conditions are available on request.

Properties

Standard

  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 140 °C
  • You can find filter cartridges that are heat-resistant up to 400 °C at Hot gas filtration
  • Metal parts: stainless steel
  • Certified for food according to REG (EC) 1935, FDA CFR 21

For raw gas side installation

A
[mm]
B
[mm]
C
[mm]
Length L
[mm]
Filter area
[m²]
517 434 480 950 2,4
517 434 480 1260 3,2
517 434 480 1555 4,1
630 560 592 950 3,2
630 560 592 1260 4,4
630 560 592 1555 5,5
737 675 700 950 4,0
737 675 700 1260 5,4
737 675 700 1555 6,7
1065 1050 1030 950 5,5
1065 1050 1030 1260 7,5
1065 1050 1030 1555 9,4

For raw gas side installation

A
[mm]
B
[mm]
C
[mm]
Length L
[mm]
Filter area
[m²]
497 434 480 950 2,4
497 434 480 1260 3,2
497 434 480 1555 4,1
610 560 592 950 3,1
610 560 592 1260 4,4
610 560 592 1555 5,5
717 675 700 950 4,0
717 675 700 1260 5,4
717 675 700 1555 6,7
1045 1050 1030 950 5,5
1045 1050 1030 1260 7,5
1045 1050 1030 1555 9,4

Technical changes reserved.

We implement your requirements

Are you looking for a solution for a new area of ​​application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
